Carrier Aggregation in LTE and 5G: Component Carriers vs Mobile Operators

5G FWA Router
, ,
1
The term “Carrier Aggregation” may cause confusion among customers. A common misunderstanding is the belief that this feature allows a device to connect to multiple mobile carriers at the same time (for example, Verizon + AT&T).

This is not what Carrier Aggregation means.

The word “carrier” does not refer to a mobile operator here. Instead, it refers to a Component Carrier (CC), which is a radio frequency (RF) channel.

Please refer to 3GPP website for the detailed explanation:

What Does “Carrier” Mean in Carrier Aggregation?

In the context of cellular standards (LTE and 5G), a carrier means a Component Carrier (CC):

  • A specific RF frequency channel

  • Used to transmit data over the air

So when we say Carrier Aggregation, we are talking about aggregating multiple RF channels from the same operator, not multiple operators.


What Is Carrier Aggregation?

Carrier Aggregation (CA) is a cellular technology that allows a device to:

  • Use multiple RF channels (component carriers) simultaneously

  • Combine their bandwidth into a single, higher-throughput data connection

  • Improve data speed and network efficiency

All aggregated carriers:

  • Belong to the same mobile network operator

  • Use the same SIM and subscription

What Carrier Aggregation Does Not Do

Carrier Aggregation does not:

  •  Connect to multiple mobile carriers (operators)

  • Combine Verizon, AT&T, T-Mobile, etc.

  • Provide redundancy across different operators

  • Replace dual-SIM or multi-WAN functionality

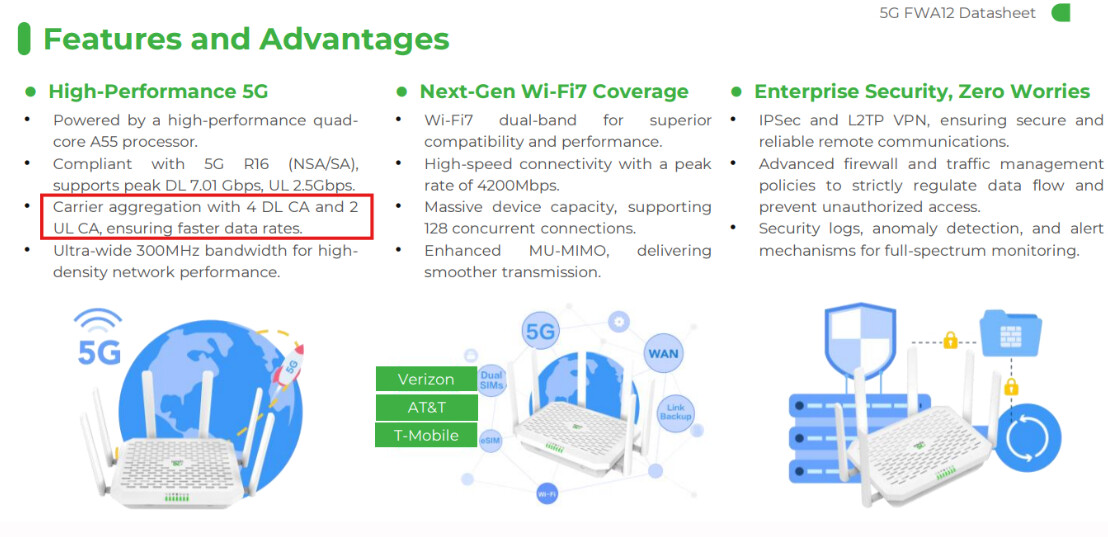

For example, FWA12 supports “Carrier aggregation with 4 DL CA and 2 UL CA". It means:

4 DL CA (Downlink Carrier Aggregation)
The device can aggregate up to four downlink component carriers, allowing it to receive data over four RF channels simultaneously.

2 UL CA (Uplink Carrier Aggregation)
The device can aggregate up to two uplink component carriers, allowing it to transmit data over two RF channels at the same time.
