In this example, we give a very simple topology to make you easily understand how to configure GRE over IPSEC

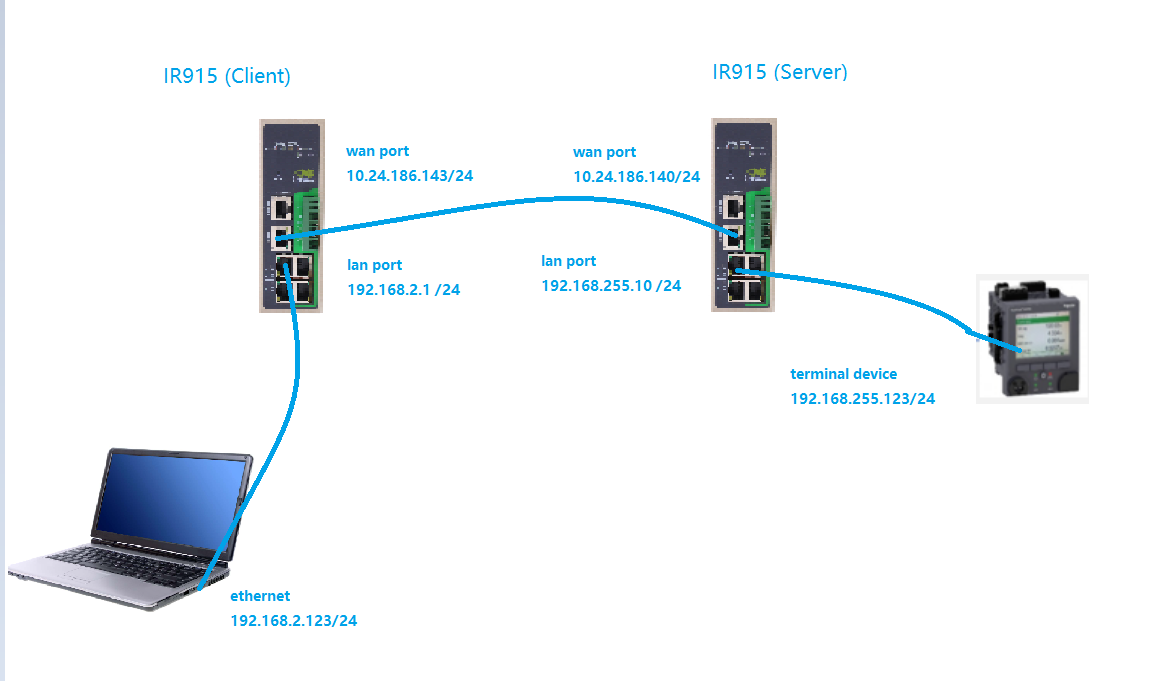

The topology after simplifying
Configuration
Step 1: Set IPsec
extern profile and configure GRE first

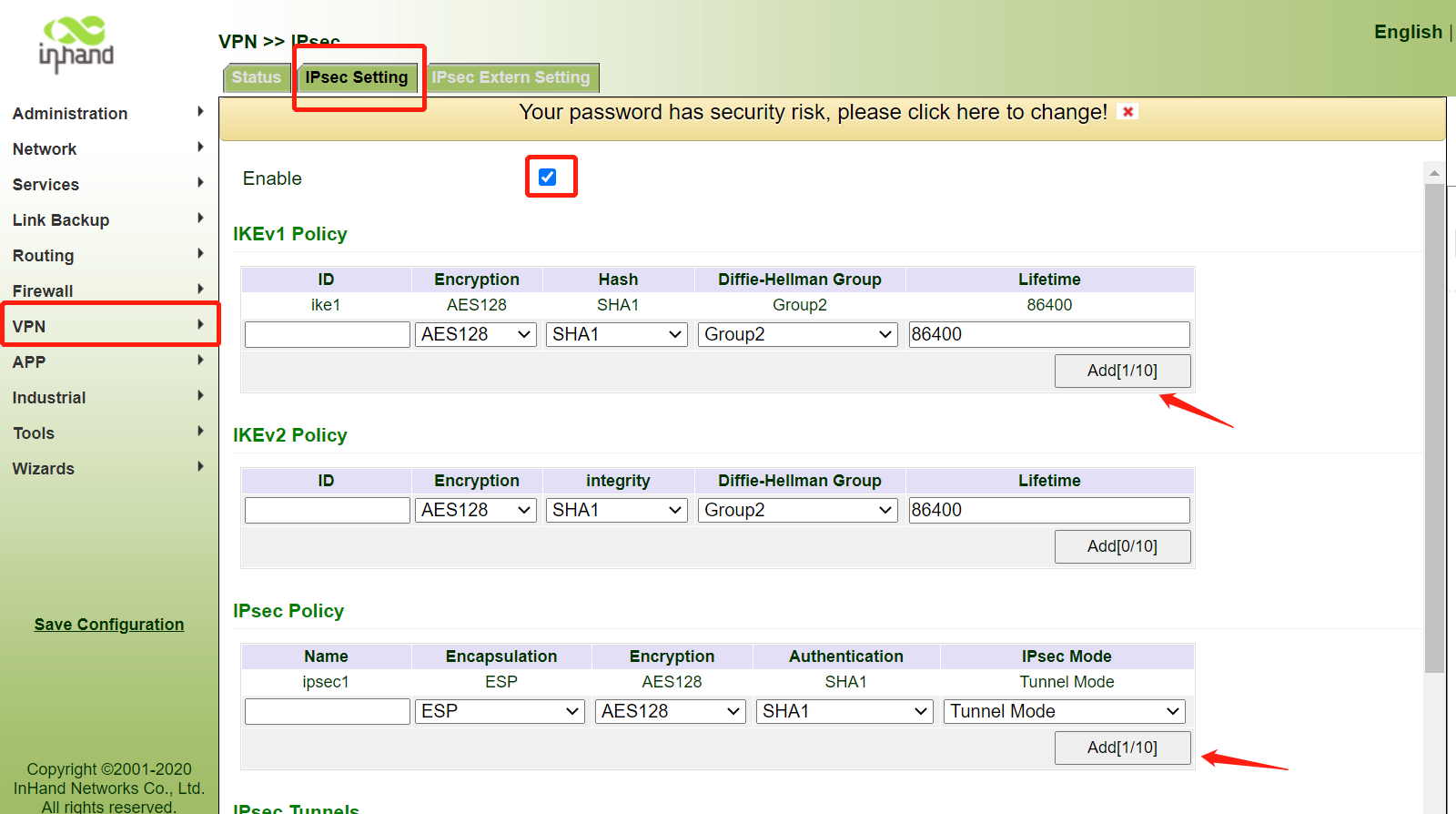

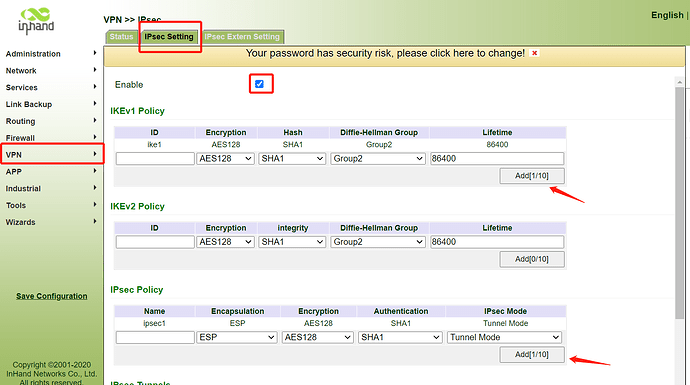

Enable IPsec

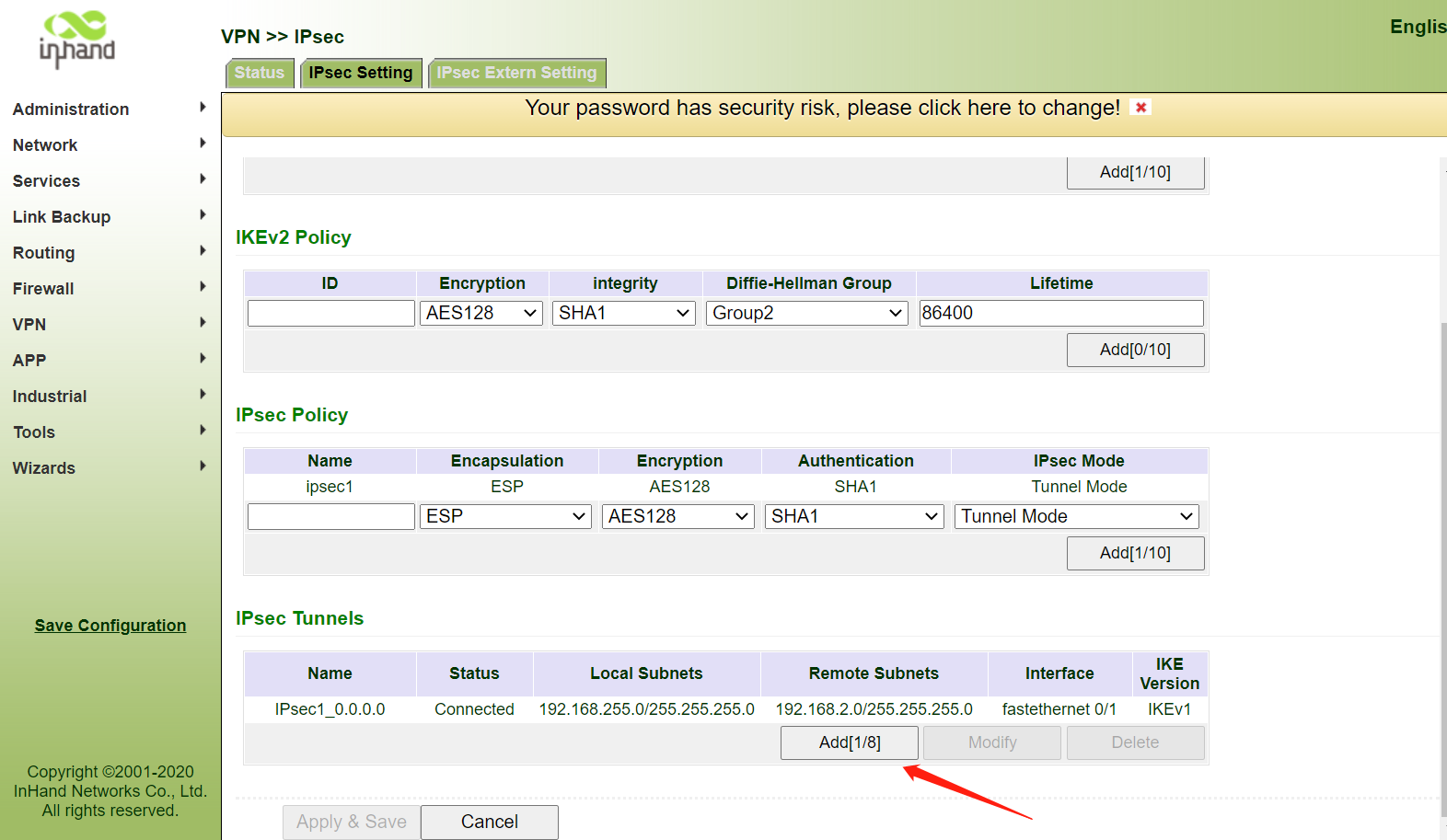

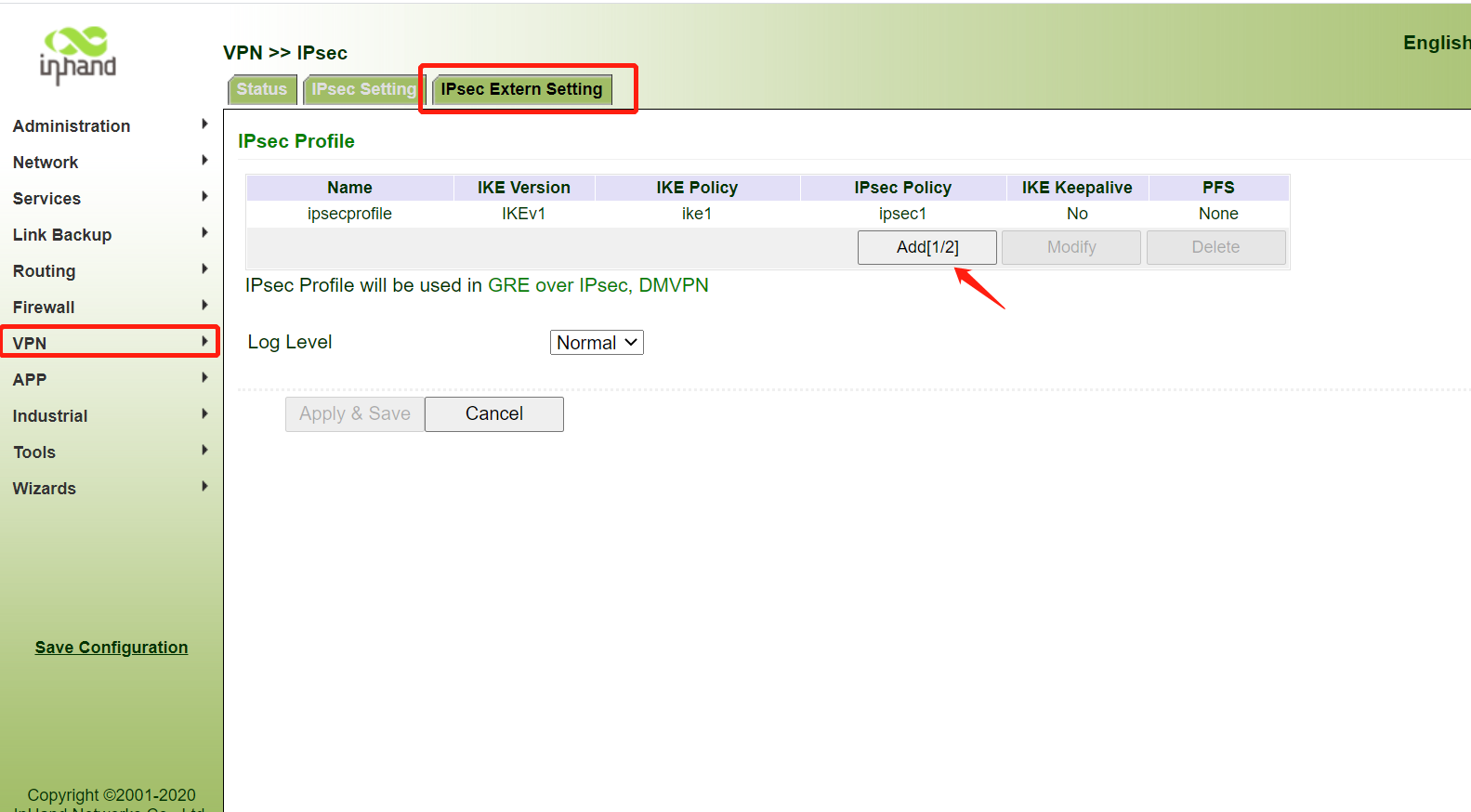

function, according to your needs to create the profiles of IKE and IPsec policy
function, according to your needs to create the profiles of IKE and IPsec policy
Note:

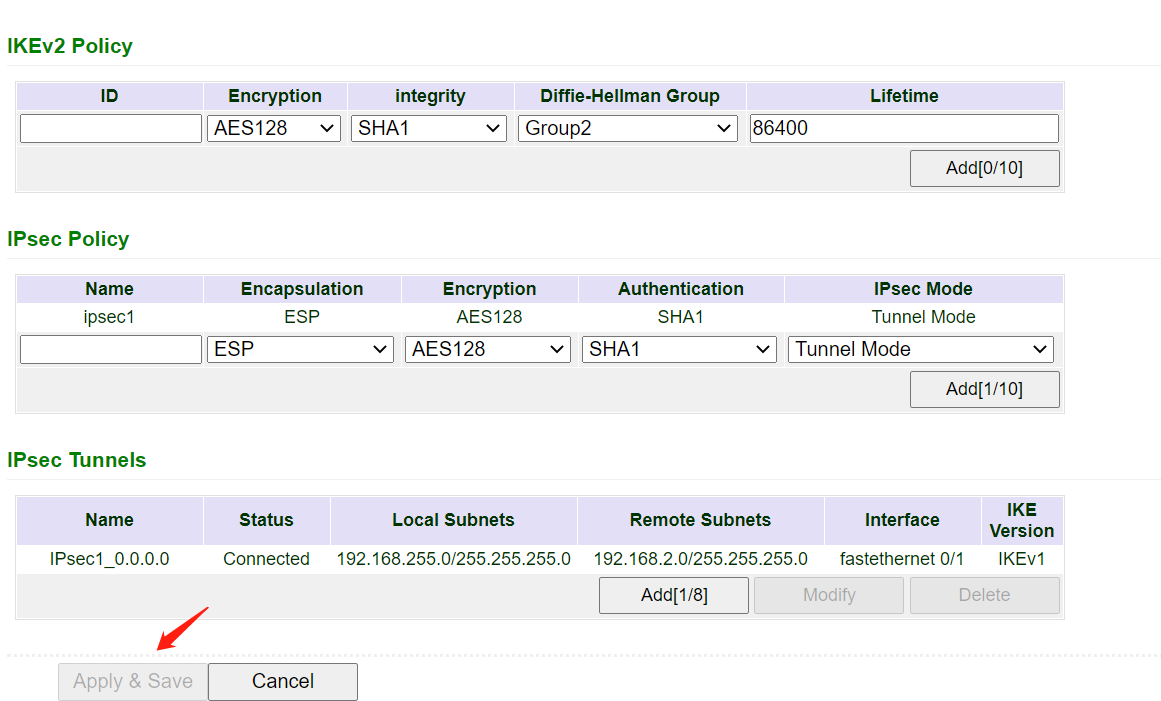

The profiles only take effect after clicking Apply
& Save.
Server Config
Client Config
Set IPsec

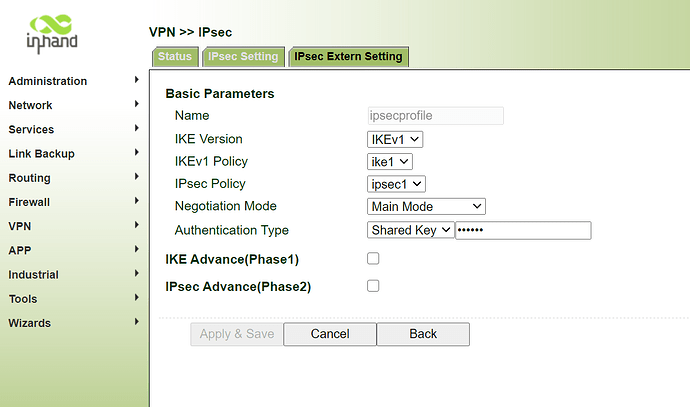

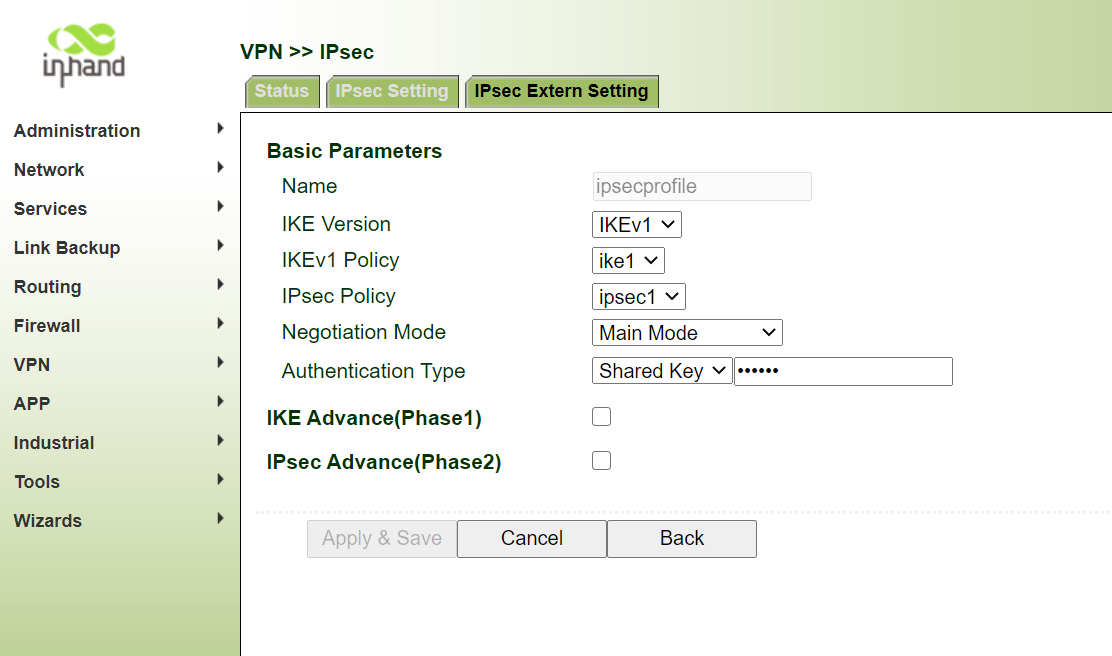

Extern profile

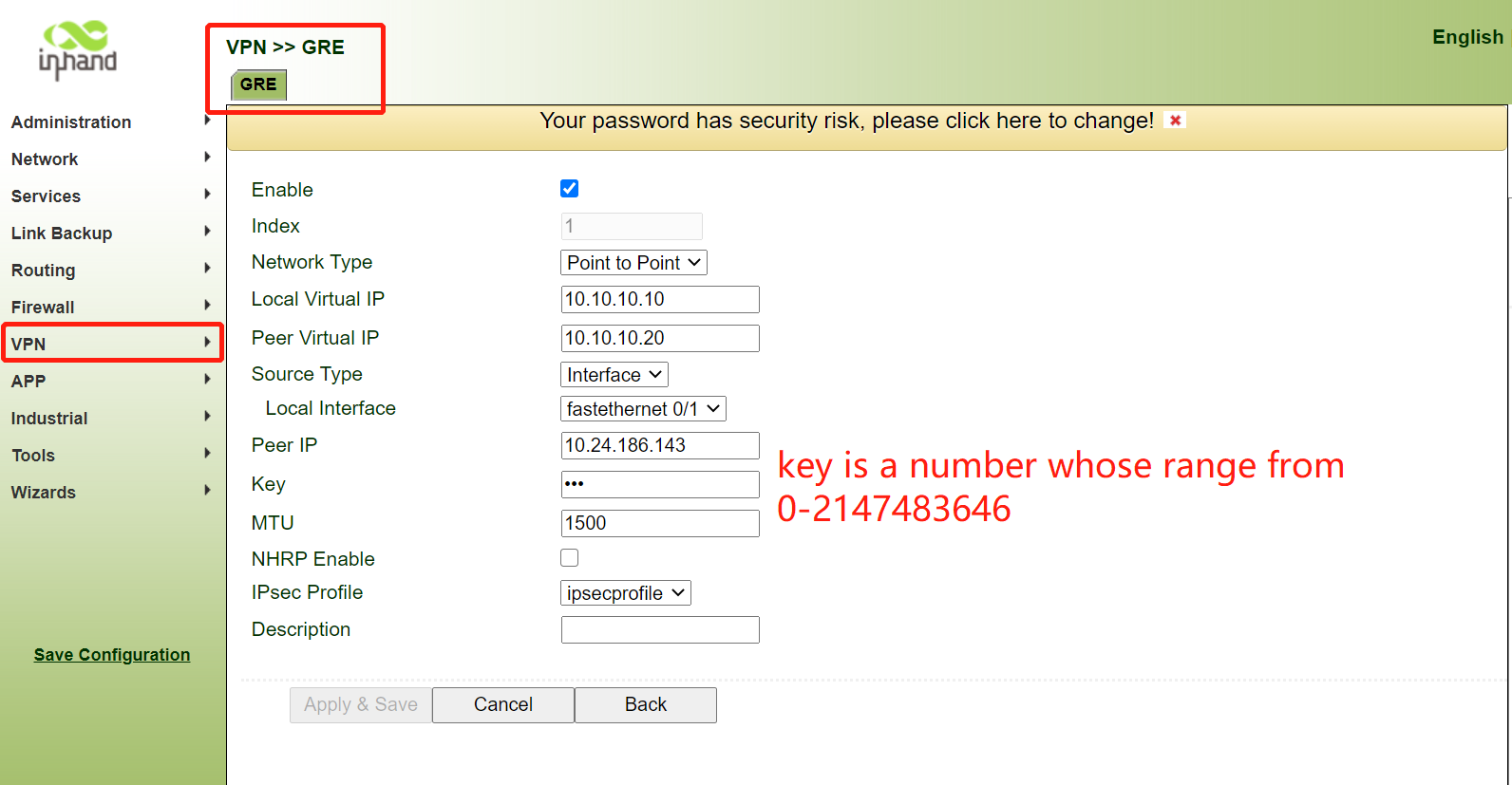

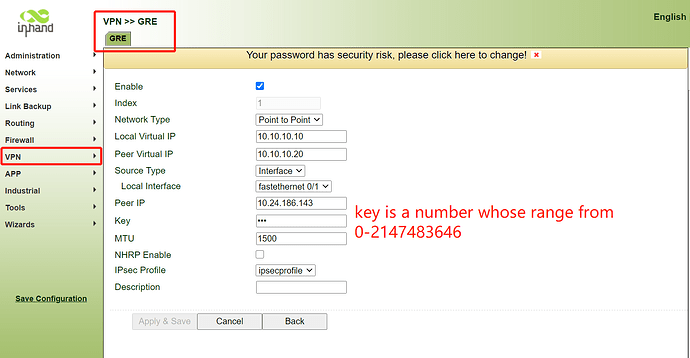

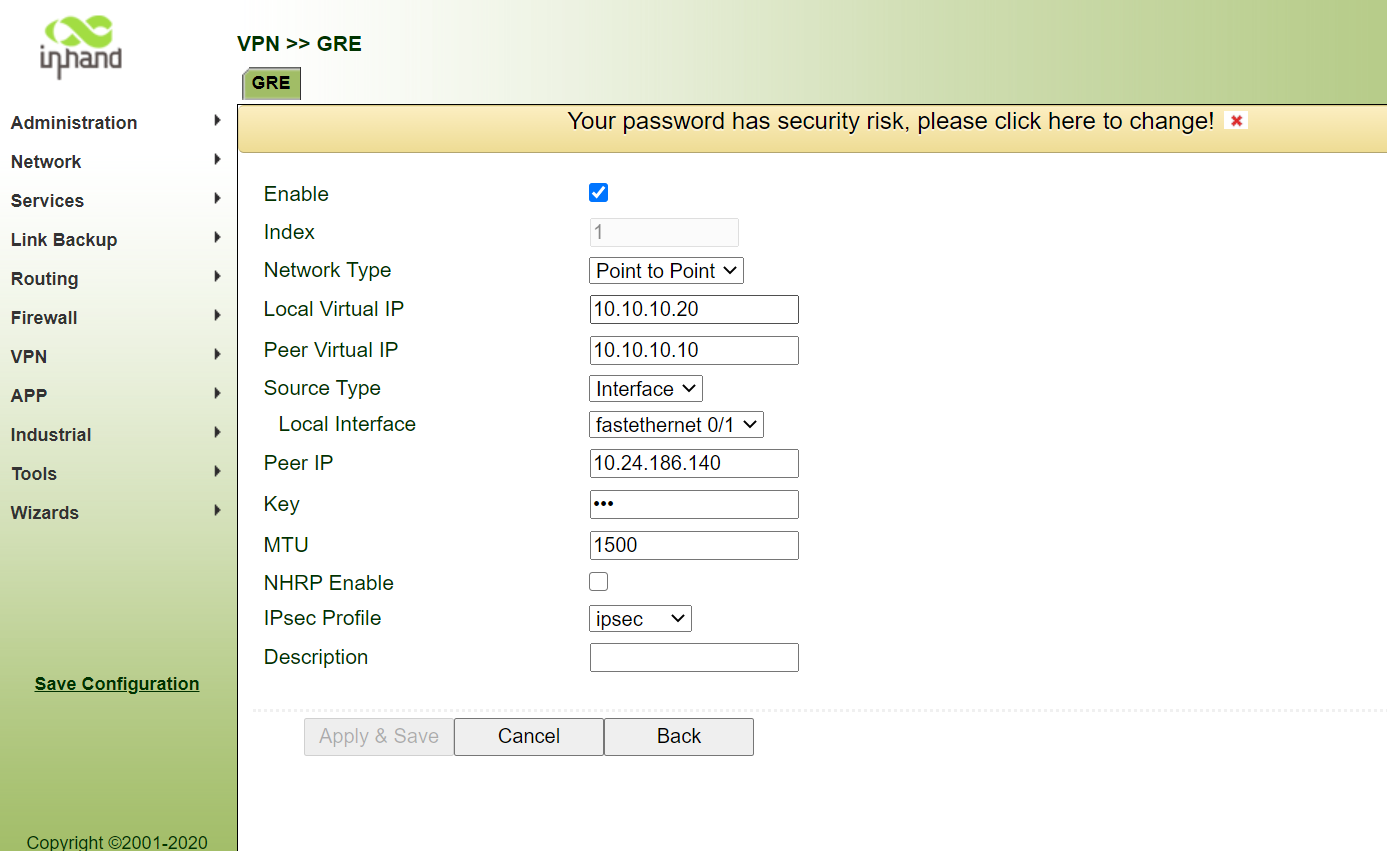

GRE Configuration:
Note:
The key
parameters in the GRE configuration and IPsec do not affect each other
independently, which can be set differently.
Server
Configuration
Client
Configuration
Configuration
Step 2 Configure IPsec

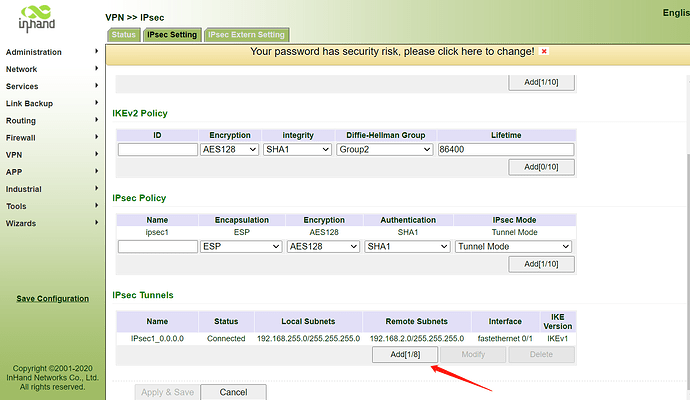

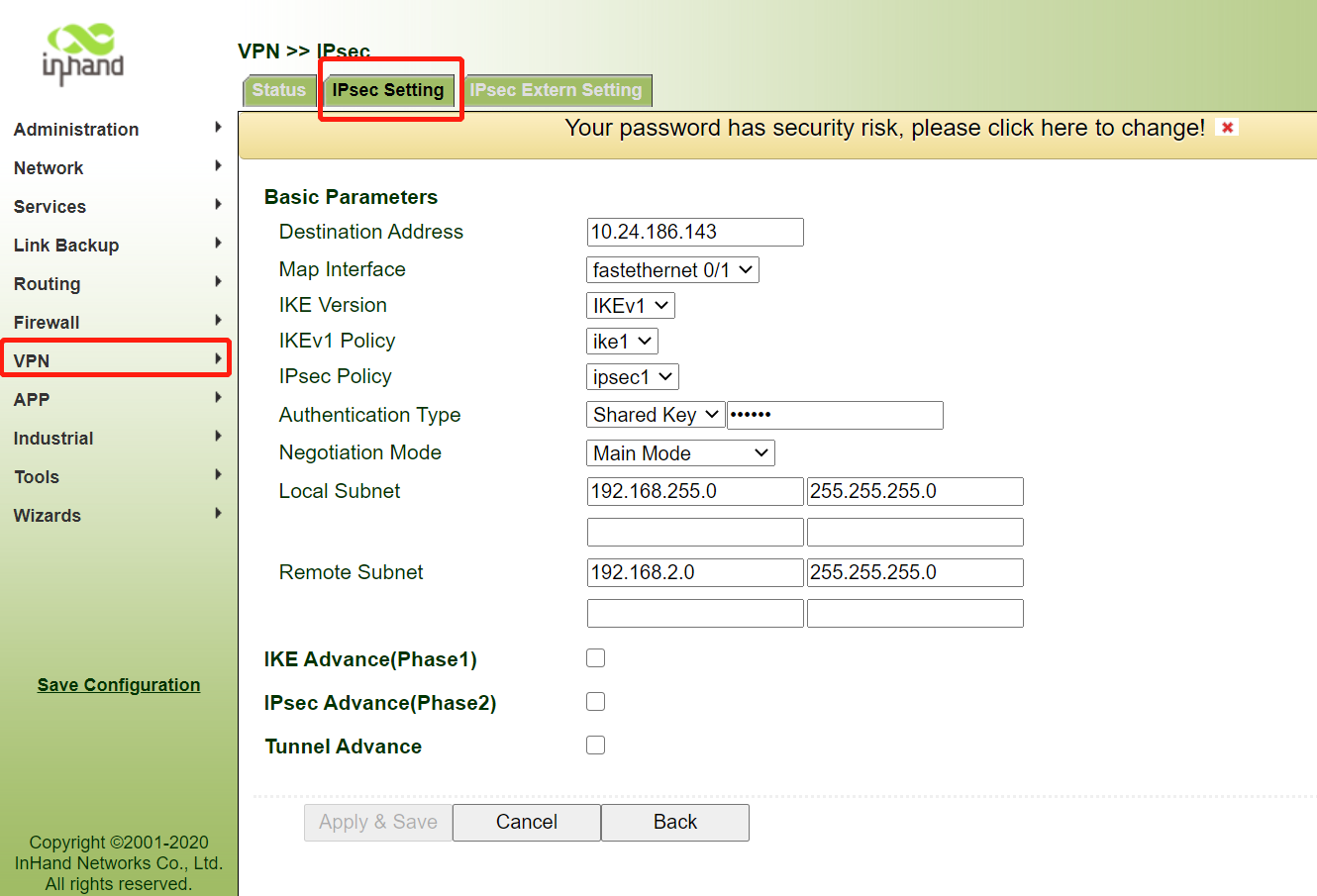

Tunnels parameters
For
example,
If your
local network IP address is
192.168.255.0/24
Remote network
IP address is
192.168.2.0/24

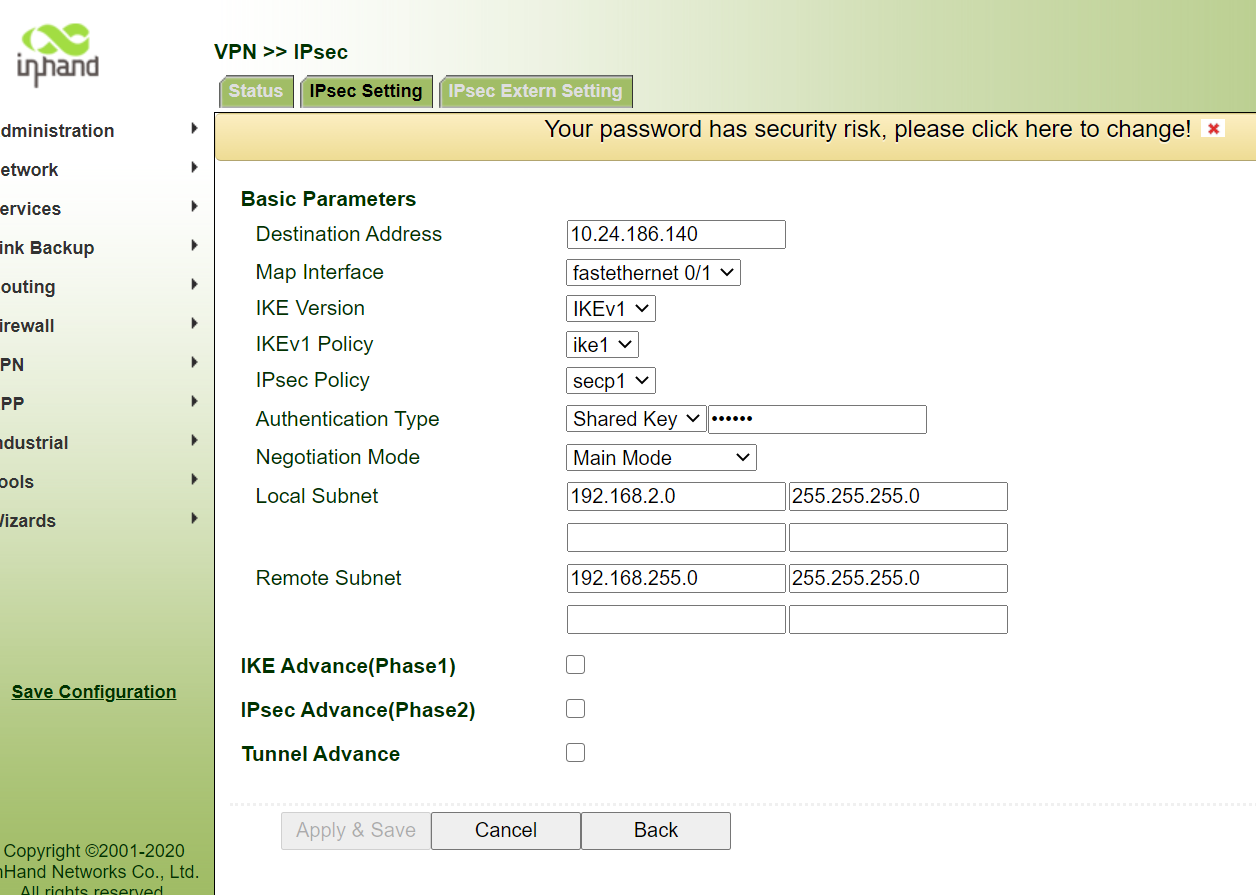

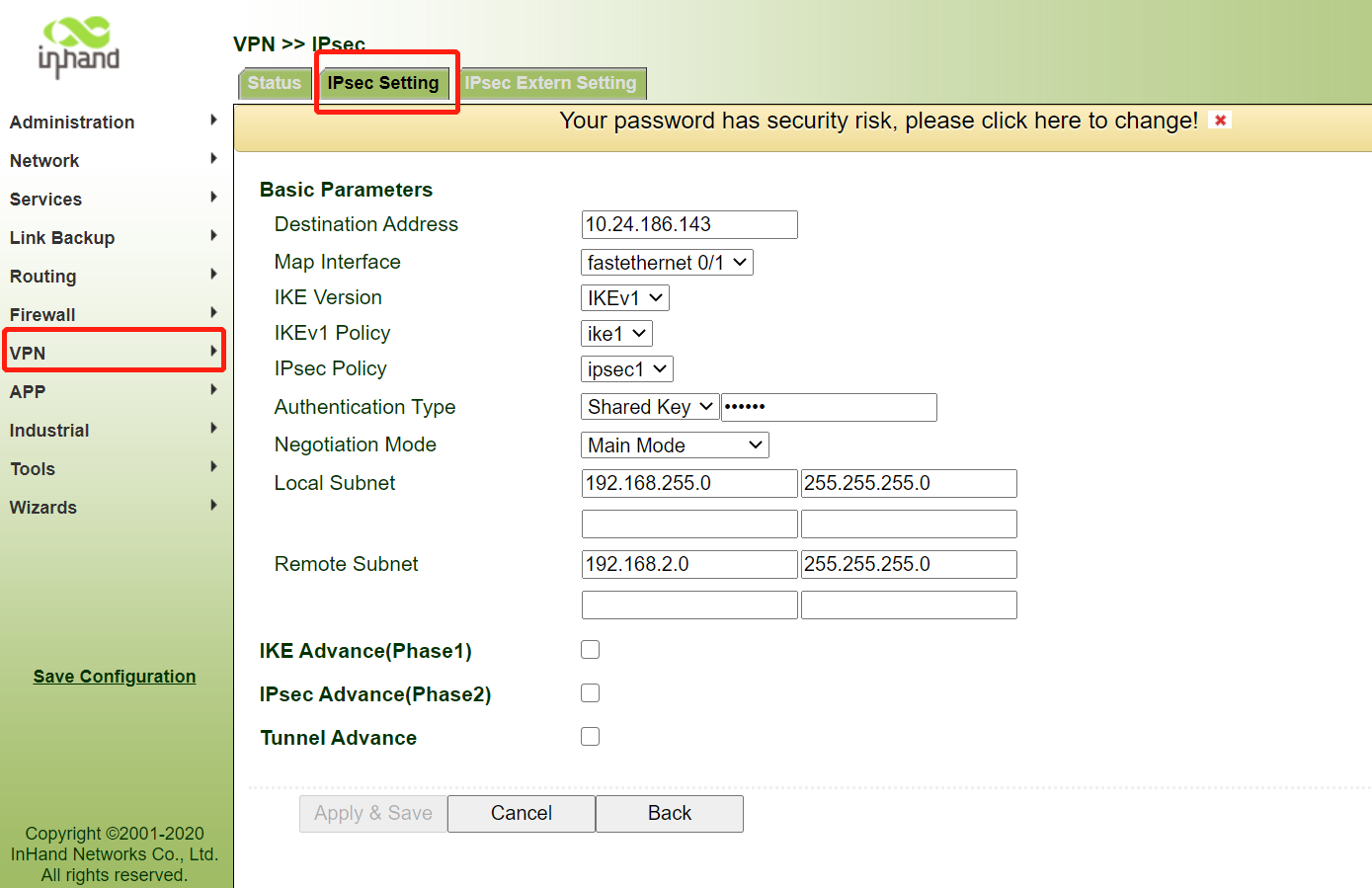

The following example instructs you on how to set the parameters.

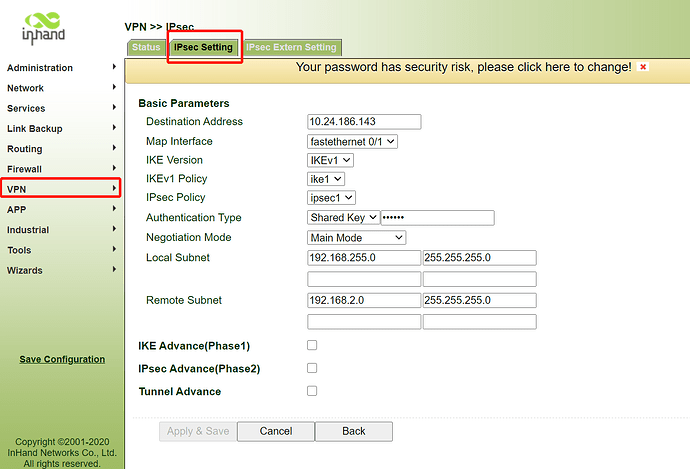

Server

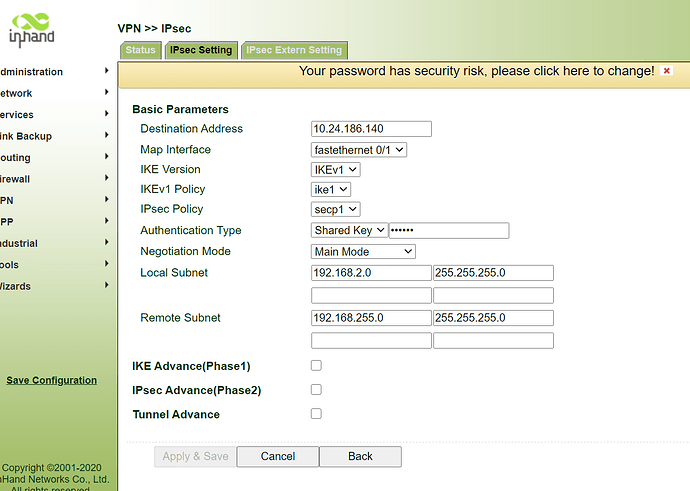

Configuration:

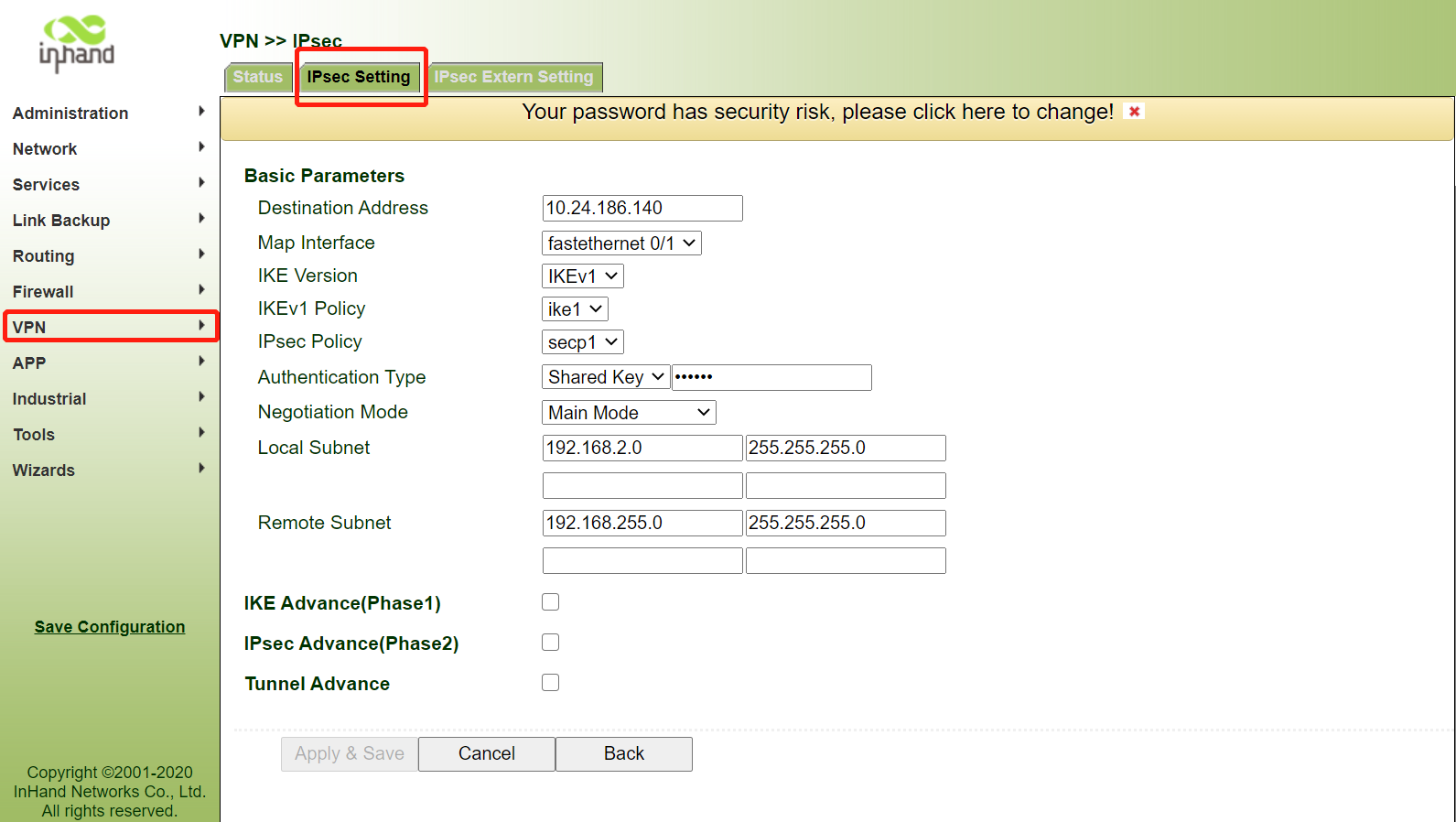

Client

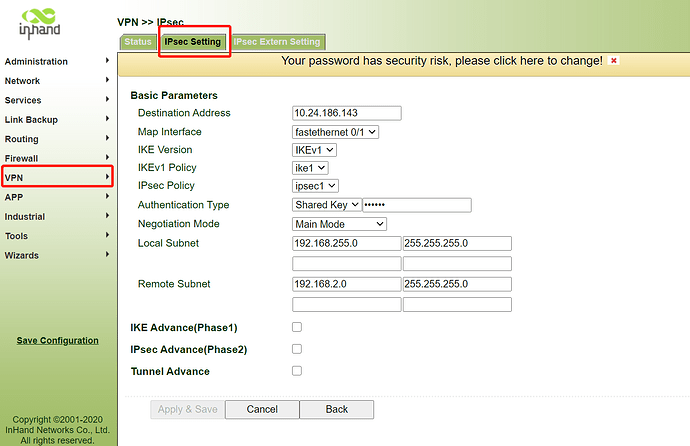

Configuration

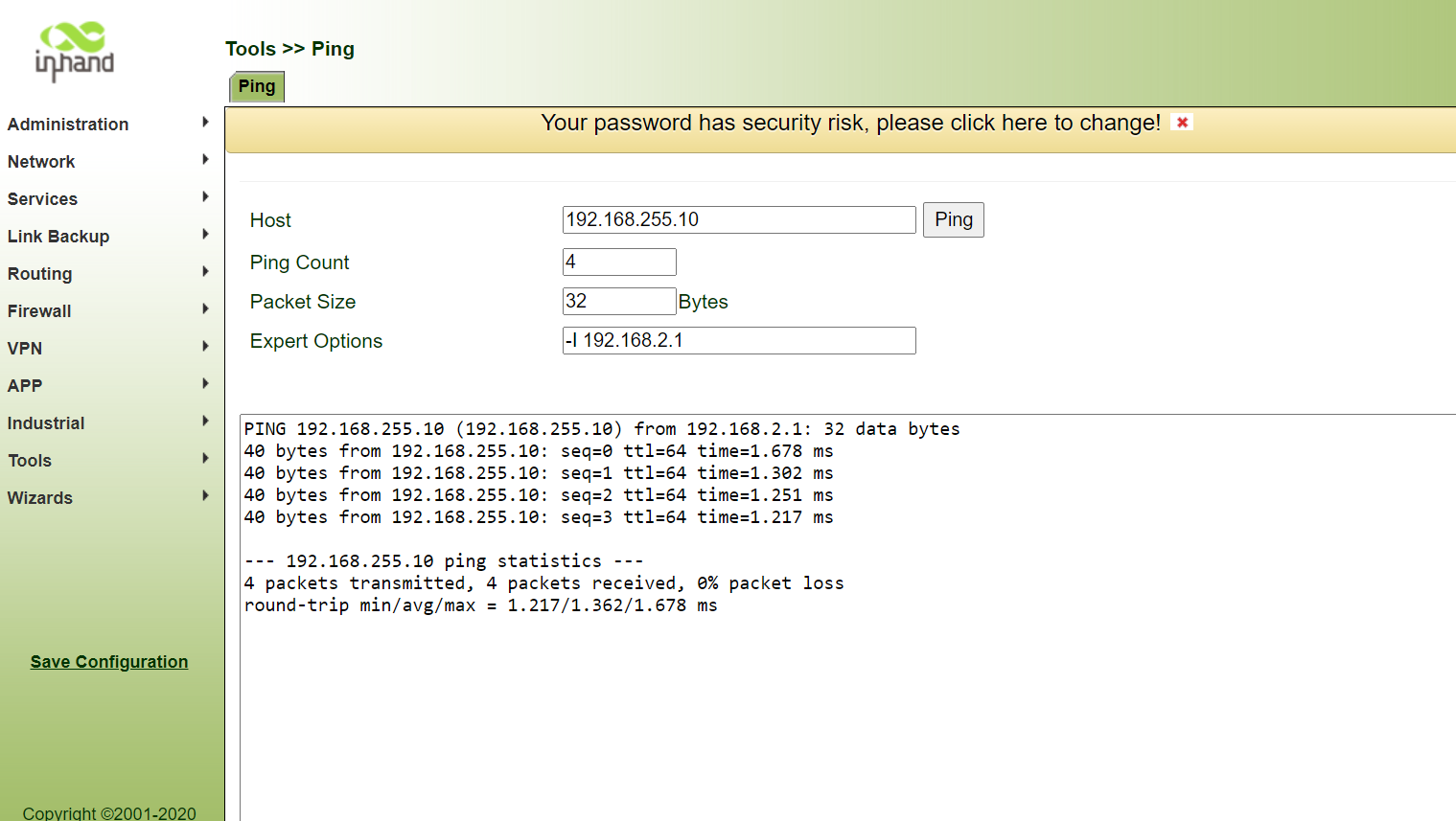

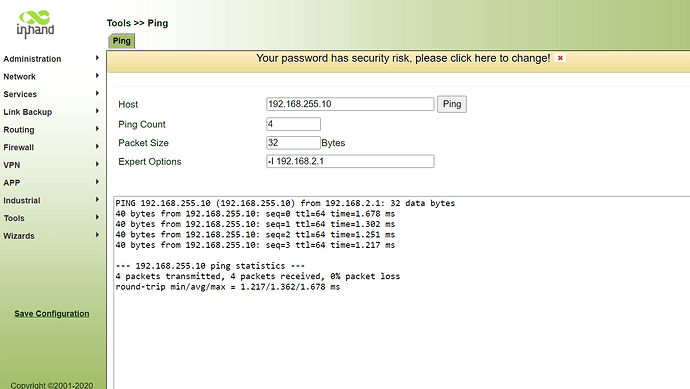

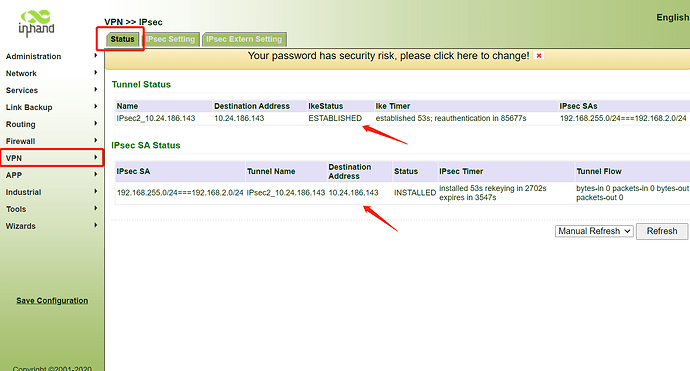

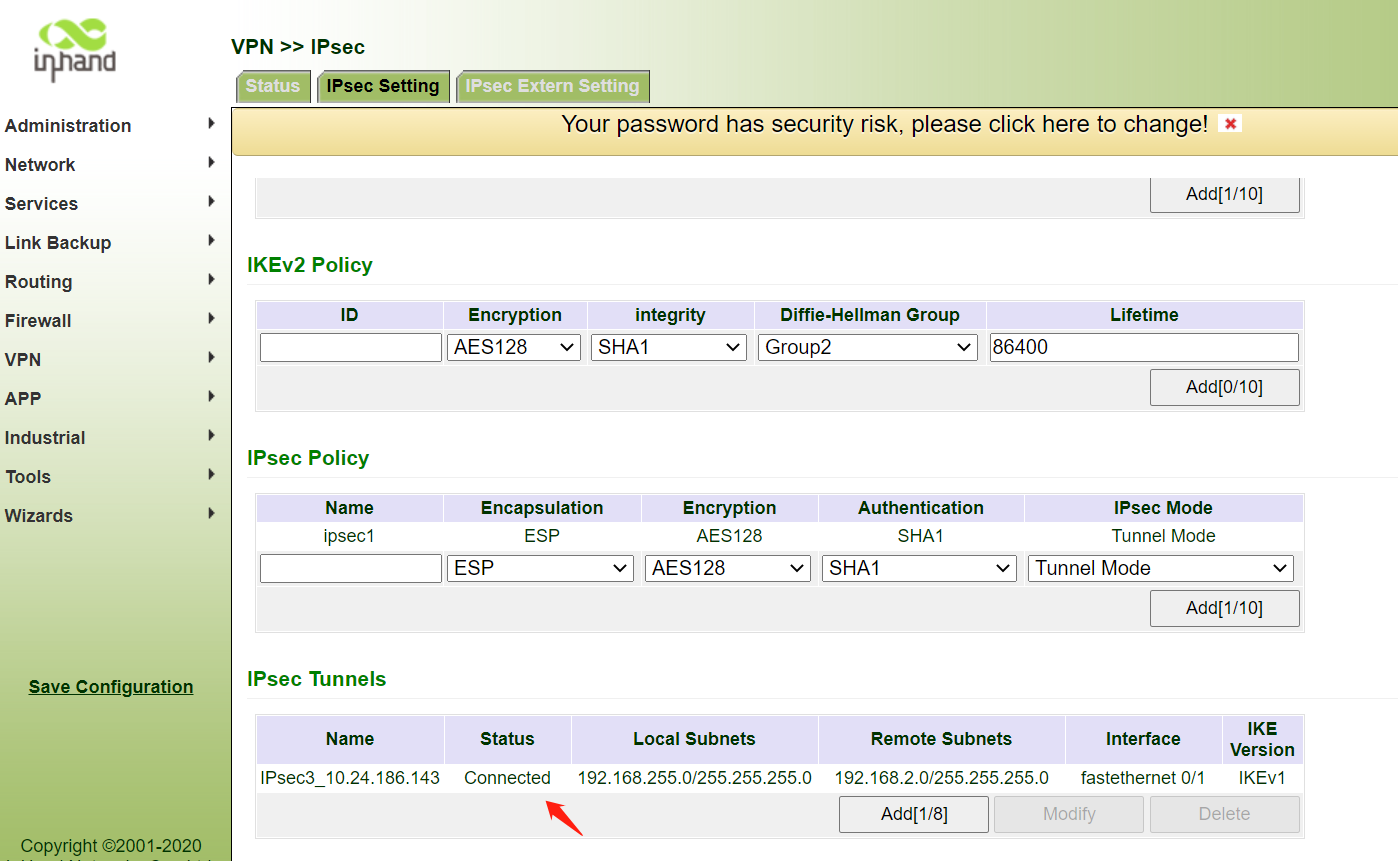

Check the

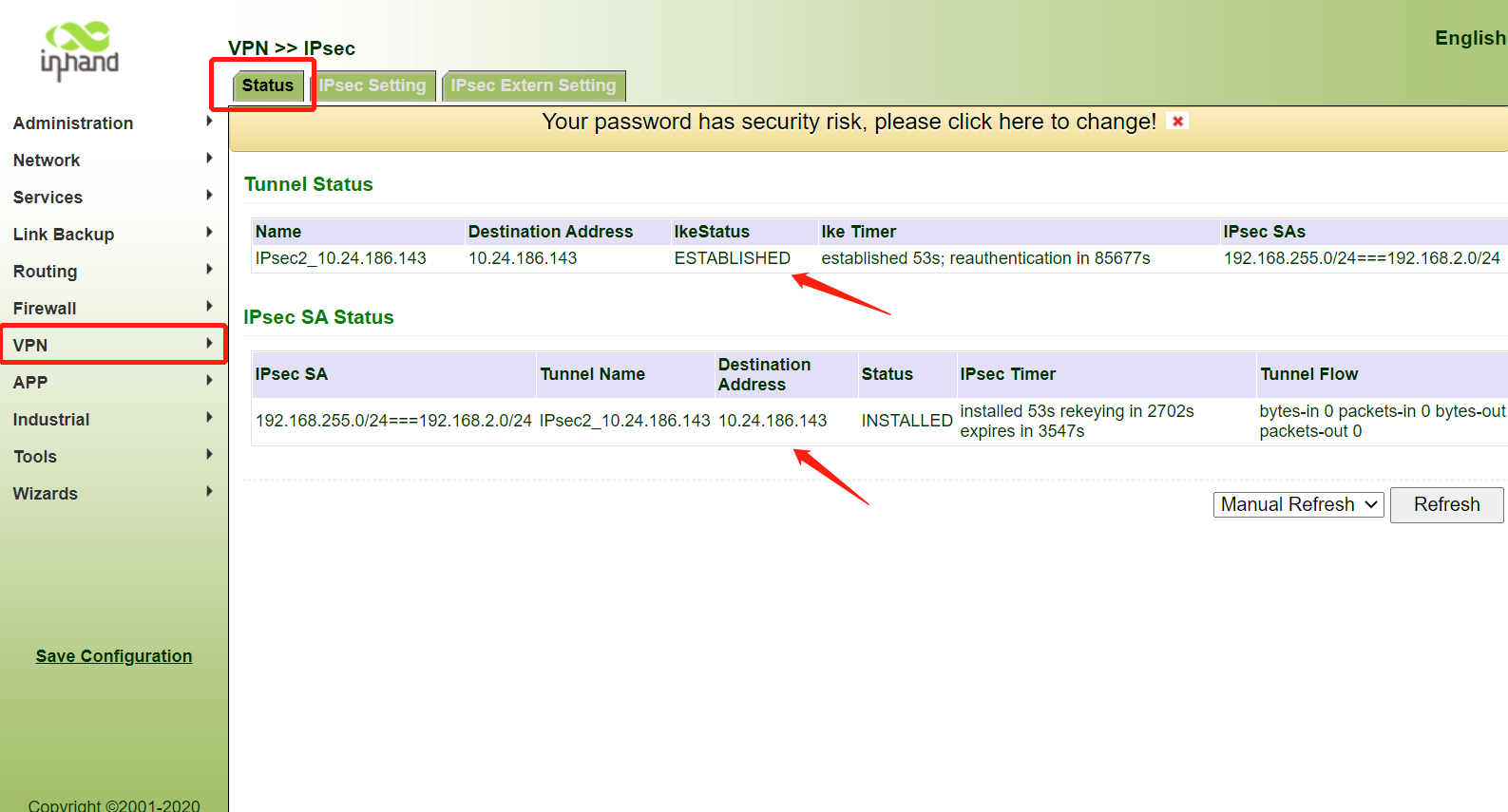

status of the tunnel
